Кольца стопорные упорные плоские пружинные внутренние

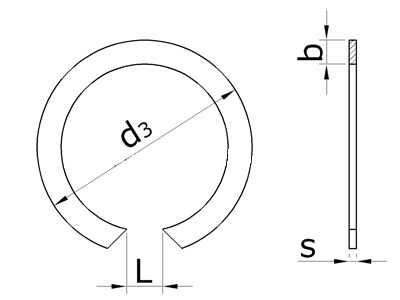

d1 - диаметр канавки;
d3 - номинальный наружный диаметр кольца в свободном состоянии;
s - номинальная толщина кольца;
b - номинальная висота тела кольца;
L - ширина разреза кольца в свободном состоянии.
|
Основные размеры концентрических колец |
|||||||
|
Обозначение |
Диаметр отверстия, мм |
Размеры, мм |
Масса 1000 колец, кг |
||||
|
d1 |
d3 |
s |
b |
L |
|||
|
A8 |
8 |
8,5 |
8,8 |
0,8 |
1,0 |
3,0 |
0,11 |
|
A9 |
9 |
9,5 |
9,8 |
0,8 |
1,0 |
3,5 |
0,13 |
|
A10 |
10 |
10,5 |
10,8 |
1,0 |
1,3 |
3,5 |
0,26 |
|
A11 |
11 |
11,5 |
11,8 |
1,0 |
1,3 |
4,0 |
0,29 |
|
A12 |
12 |
12,7 |
13,0 |
1,0 |
1,7 |
4,0 |
0,40 |
|
A13 |
13 |
13,8 |
14,1 |
1,0 |
1,7 |
4,0 |
0,45 |
|
A14 |
14 |
14,8 |
15,1 |
1,0 |
1,7 |
4,5 |
0,48 |
|
A15 |
15 |
15,9 |
16,2 |
1,0 |
1,7 |
4,5 |
0,53 |
|
A16 |
16 |
17,0 |
17,3 |
1,0 |
1,7 |
5,0 |
0,57 |
|
A17 |
17 |
18,0 |
18,4 |
1,0 |
1,7 |
5,0 |
0,61 |
|
A18 |
18 |
19,2 |
19,6 |
1,0 |
2,0 |
6,0 |
0,75 |
|
A19 |
19 |
20,2 |
20,6 |
1,0 |
2,0 |
6,0 |
0,80 |
|
A20 |
20 |
21,4 |
21,8 |
1,0 |
2,0 |
6,0 |
0,85 |
|
A21 |
21 |
22,4 |
22,8 |
1,0 |
2,0 |
6,0 |
0,90 |
|
A22 |
22 |
23,4 |
23,8 |
1,0 |
2,0 |
6,0 |
0,95 |
|
A23 |
23 |
24,5 |
24,9 |
1,2 |
2,5 |
7,0 |
1,47 |
|
A24 |
24 |
25,5 |
25,9 |
1,2 |
2,5 |
7,0 |
1,52 |
|
A25 |
25 |
26,5 |
26,9 |
1,2 |
2,5 |
7,0 |
1,59 |
|
A26 |
26 |
27,5 |
28,0 |
1,2 |
2,5 |
7,0 |
1,67 |
|
A28 |
28 |
29,5 |
30,2 |
1,2 |
2,5 |
8,0 |
1,81 |
|
A29 |
29 |
30,5 |
31,2 |
1,2 |
2,5 |
8,0 |
1,92 |
|
A30 |
30 |
31,5 |
32,2 |
1,2 |
2,5 |
8,0 |
1,97 |
|
A32 |
32 |
33,8 |
34,5 |
1,2 |
2,5 |
9,0 |
2,12 |
|
A34 |
34 |
35,7 |
36,5 |
1,2 |
2,5 |
9,0 |
2,26 |
|
A35 |
35 |
37,0 |
37,8 |
1,2 |
3,2 |
10,0 |
2,88 |
|
A36 |
36 |
38,0 |
38,8 |
1,2 |
3,2 |
10,0 |
2,98 |
|
A37 |
37 |
39,0 |
39,8 |
1,2 |
3,2 |
10,0 |
3,04 |
|
A38 |
38 |
40,0 |
40,8 |
1,2 |
3,2 |
10,0 |
3,16 |
|
A40 |
40 |
42,5 |
43,5 |
1,7 |
4,0 |
12,0 |
5,77 |
|
A42 |
42 |
44,5 |
45,5 |
1,7 |
4,0 |
12,0 |
6,06 |
|
A45 |
45 |
47,5 |
48,5 |
1,7 |
4,0 |
14,0 |
6,22 |
|
A46 |
46 |
48,5 |
49,5 |
1,7 |
4,0 |
14,0 |
6,44 |
|
A47 |
47 |
49,5 |
50,6 |
1,7 |
4,0 |
14,0 |
6,48 |
|
A48 |
48 |
50,5 |
51,6 |
1,7 |
4,0 |
14,0 |
6,65 |
|
A50 |
50 |
53,0 |
54,2 |
1,7 |
4,0 |
14,0 |
7,03 |
|
A52 |
52 |
55,0 |
56,2 |
1,7 |
5,0 |
16,0 |
8,81 |
|
A54 |
54 |
57,0 |
58,2 |
1,7 |
5,0 |
16,0 |
9,32 |
|
A55 |
55 |
58,0 |
59,2 |
1,7 |
5,0 |
16,0 |
9,60 |
|
A56 |
56 |
59,0 |
60,2 |
1,7 |
5,0 |
16,0 |
9,79 |
|
A58 |
58 |
61,0 |
62,2 |
1,7 |
5,0 |
16,0 |
9,97 |
|
A60 |
60 |
63,0 |
64,2 |
1,7 |
5,0 |
16,0 |
10,40 |
|
A62 |
62 |
65,0 |
66,2 |
1,7 |
5,0 |
16,0 |
10,75 |
|
A65 |
65 |
68,0 |
69,2 |
1,7 |
5,0 |
16,0 |
11,40 |
|
A68 |
68 |
71,0 |
72,5 |
1,7 |
5,0 |
16,0 |
12,10 |
|
A70 |
70 |
73,0 |
74,5 |
1,7 |
5,0 |
16,0 |
12,34 |
|
A72 |
72 |
75,0 |
76,5 |
1,7 |
5,0 |
18,0 |
12,53 |
|
A75 |
75 |
78,0 |
79,5 |
1,7 |
5,0 |
18,0 |
13,31 |
|
A78 |
78 |
81,0 |
82,5 |
2,0 |
6,0 |
18,0 |
20,69 |
|
A80 |
80 |
83,5 |
85,5 |
2,0 |
6,0 |
18,0 |
21,33 |
|
A82 |
82 |
85,5 |
87,5 |
2,0 |
6,0 |
18,0 |
22,06 |
|
A85 |
85 |
88,5 |
90,5 |
2,0 |
6,0 |
20,0 |
22,58 |
|
A88 |
88 |
91,5 |
93,5 |
2,0 |
6,0 |
20,0 |
23,62 |
|
A90 |
90 |
93,5 |
95,5 |
2,0 |
6,0 |
20,0 |
24,16 |
|
A92 |
92 |
95,5 |
97,5 |
2,0 |
6,0 |
20,0 |
24,92 |
|
A95 |
95 |
98,5 |
100,5 |
2,0 |
6,0 |
20,0 |
25,55 |
|
A98 |
98 |
101,5 |
103,5 |
2,0 |
6,0 |
20,0 |
26,67 |
|
A100 |
100 |
103,5 |
105,5 |
2,0 |
6,0 |
20,0 |
26,97 |
|
A102 |
102 |
106,0 |
108,0 |
2,5 |
7,0 |
22,0 |
39,98 |
|
A105 |
105 |
109,0 |
111,0 |
2,5 |
7,0 |
22,0 |
40,88 |
|
A108 |
108 |
112,0 |
114,0 |
2,5 |
7,0 |
22,0 |
42,67 |
|
A110 |
110 |
114,0 |
116,0 |
2,5 |
7,0 |
22,0 |
43,08 |
|
A112 |
112 |
116,0 |
118,0 |
2,5 |
7,0 |
22,0 |
44,57 |
|
A115 |
115 |
119,0 |
121,5 |
2,5 |
7,0 |
22,0 |
45,49 |
|
A120 |
120 |
124,0 |
126,5 |
2,5 |
7,0 |
22,0 |
47,79 |
|
A125 |
125 |
129,0 |
131,5 |
2,5 |
7,0 |
22,0 |
49,79 |
|
A130 |
130 |
134,0 |
136,5 |
2,5 |
8,0 |
24,0 |
59,44 |
|
A135 |
135 |
139,0 |
141,5 |
2,5 |
8,0 |
24,0 |
60,85 |
|
A140 |
140 |
144,0 |
146,5 |
2,5 |
8,0 |
24,0 |
63,25 |
|
A145 |
145 |
149,0 |
151,5 |
2,5 |
8,0 |
24,0 |
65,85 |
|
A150 |
150 |
155,0 |
157,5 |
3,0 |
8,5 |
28,0 |
80,72 |
|
A155 |
155 |
160,0 |
162,5 |
3,0 |
8,5 |
28,0 |
83,63 |
|
A160 |
160 |
165,0 |
167,5 |
3,0 |
8,5 |
28,0 |
86,72 |
|
A165 |
165 |
170,0 |
172,2 |
3,0 |
8,5 |
28,0 |
89,72 |
|
A170 |
170 |
175,0 |
177,5 |
3,0 |
8,5 |
28,0 |
92,47 |
|
A175 |
175 |
180,0 |
182,5 |
3,0 |
9,5 |
28,0 |
114,00 |
|
A180 |
180 |
185,0 |
188,0 |
3,0 |
9,5 |
28,0 |
117,20 |
|
A190 |
190 |
195,0 |
198,0 |
3,0 |
9,5 |
28,0 |
124,20 |
|
A200 |
200 |
205,0 |
208,0 |
3,0 |
9,5 |
30,0 |
130,11 |
|
A210 |
210 |
215,0 |
218,0 |
3,0 |
10,5 |
30,0 |
151,01 |
|
A215 |
215 |
221,0 |
224,0 |
3,0 |
10,5 |
30,0 |
156,51 |
|
A220 |
220 |
226,0 |
229,0 |
3,0 |
10,5 |
32,0 |
159,10 |
|
A225 |
225 |
231,0 |
234,0 |
3,0 |
10,5 |
32,0 |
163,90 |
|
A230 |
230 |
236,0 |
239,0 |
3,0 |
10,5 |
32,0 |
167,80 |
|
A240 |
240 |
246,0 |
249,0 |
3,0 |
10,5 |
32,0 |
176,50 |
|
A250 |
250 |
256,0 |
259,0 |
3,0 |
10,5 |
32,0 |
183,10 |
|
A260 |
260 |
268,0 |
271,0 |
3,0 |
10,5 |
34,0 |
190,20 |
|
A270 |
270 |
278,0 |
281,0 |
3,0 |
10,5 |
34,0 |
197,90 |
|
A280 |
280 |
288,0 |
291,0 |
3,0 |
10,5 |
34,0 |
203,50 |
|
A290 |
290 |
298,0 |
301,0 |
3,0 |
10,5 |
34,0 |
213,30 |
|
A300 |
300 |
308,0 |
311,0 |
3,0 |
10,5 |
34,0 |
221,40 |
|
A310 |
310 |
318,0 |
321,0 |
3,0 |
10,5 |
34,0 |
229,30 |
|
A320 |
320 |
328,0 |
331,0 |
3,0 |
10,5 |
34,0 |
236,50 |
